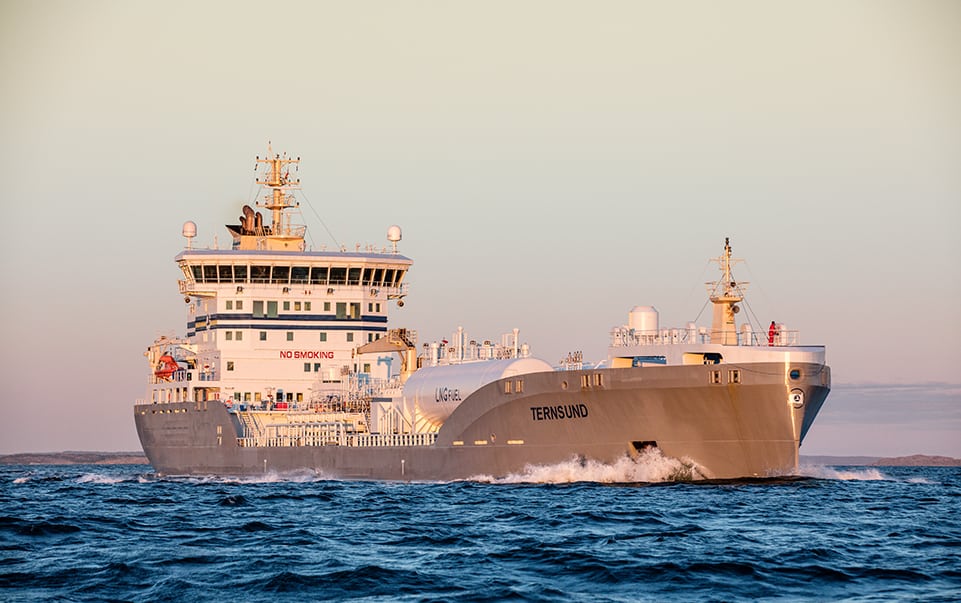

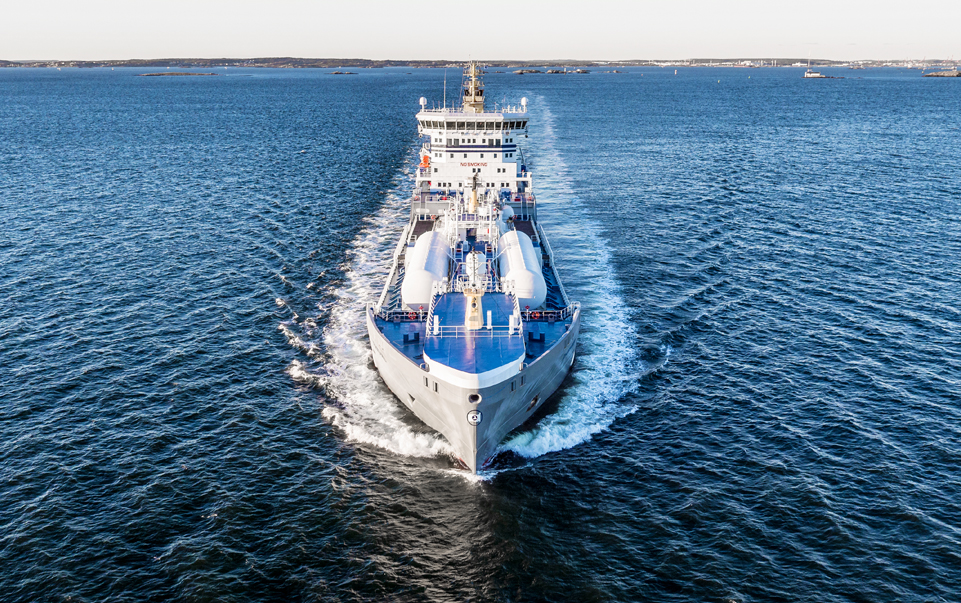

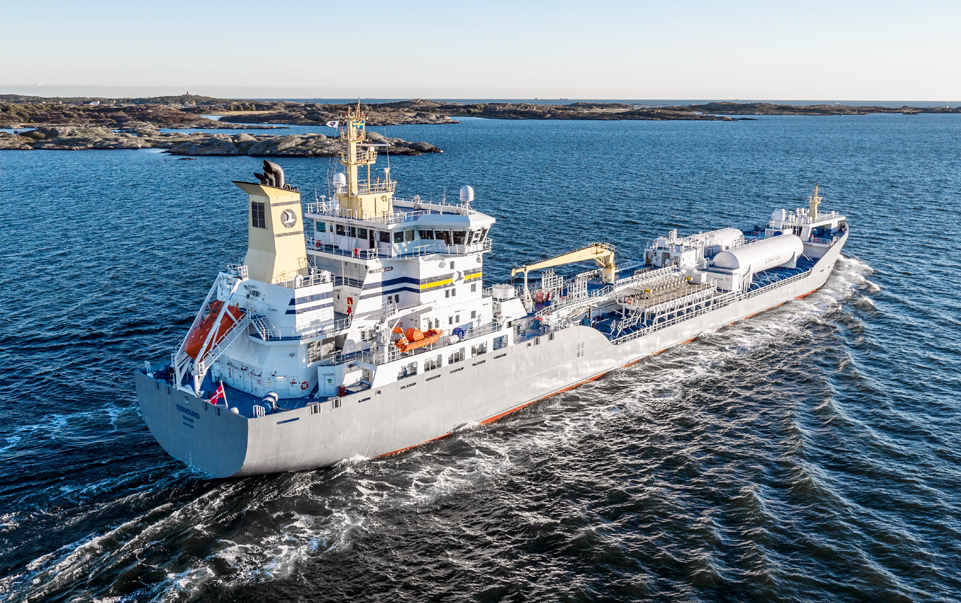

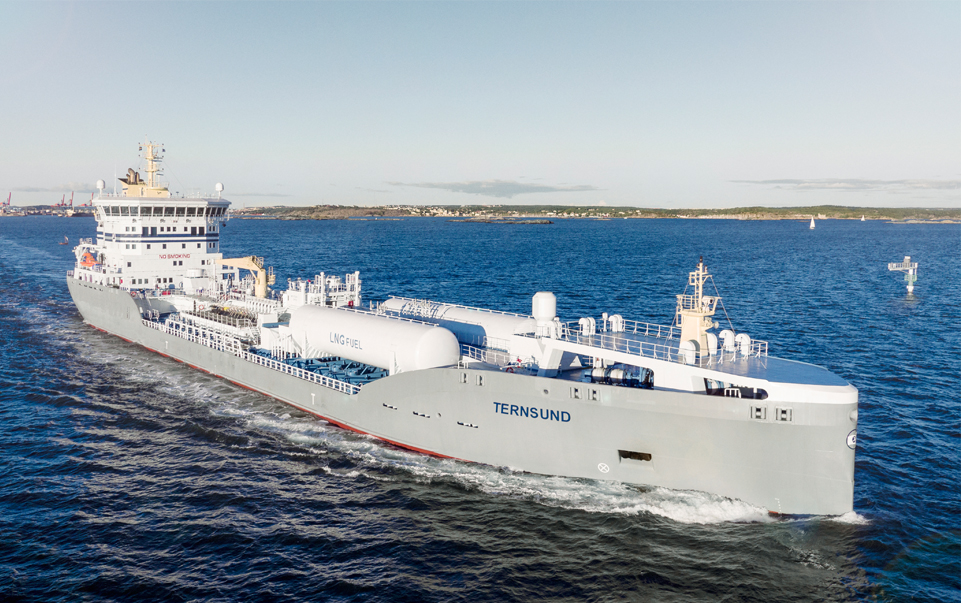

M/T Ternsund

Download as PDF

GENERAL:

  • Builder: Avic Dingheng Shipbuilding co. LTD, China 2016.
  • Class notation: DNV 1A Tanker for chemicals Tanker for oil BIS Clean COATPSPC( B) E0 ESP Gas fuelled LNG Ice(1A) NAUT(NAV) TMON(oil lubricated) VCS(1).

PARTICULARS:

  • IMO No: 9722390
  • Flag: DIS
  • Call Sign: OWPV2
  • Length Overall: 147.00 m
  • Length Between Perpendicular: 143.50 m
  • Breath (moulded): 22.00 m
  • Depth (moulded): 11.70 m
  • Draught (scantling): 9.00 m
  • Deadweight (at scantling draught): 15,000 t
  • Gross tonnage: 11,374 t
  • Net tonnage: 4,780 t
  • Hull no: AD0024
  • Design: Rolls-Royce Marine AS, type NVC 615 CT.
  • Consumtion: 12.0 knots 8.9 tonst LNG/Day.
  • Marine gas oil 610 m3
  • Cargo tank capacity 98%: 16,559 m3
  • Ballast water tanks: 6,636 m3
  • LNG fuel storage tanks 630 m3
  • Marine gas oil: 610 m3
  • Slop tanks: 242 m3
  • Tech fresh water tanks: 325 m3
  • Urea: 52 m3
  • Tank coating: MarineLine 784
  • Cargo Pumps: Deepwell pumps type DW 200/250 multisuction. Frequency controlled 450 m3/h at 120 m.l.c.
  • Cargo Alarm & monitoring systems: Kongsberg Tank Radar, K-Chief 600 alarm, monitoring & control system, Operator station-OS. Kockumation Loading computer.
  • Intergas system: The Inertgas system is using one existing dedicated Thermal oil heater with a burner modified to also be able to generate Inertgas. Capacity 3,950 m3/h.
  • NitrogenSystem: A N2 generator, cap. abt. 100 Nm3/h @ 96% N2 installed in ER. N2 buffer tank of about 20 m3 for Cargo handling. Buffer tank serving dual fuel machinery in ER also installed.
  • Balast water treatment: Panasia GloEn-Patrol. BWMS is a combined treatment system taking advantage of Filter and UV units most environmentally friendly and optimally designed. Treatment Capacity: 1,200 m3/hr x 1 set.
  • Bowthruster: 1 x Tunnel Thruster 1,650 AUX CP 865 kW 60 Hz. DNV Class notation Ice 1A.

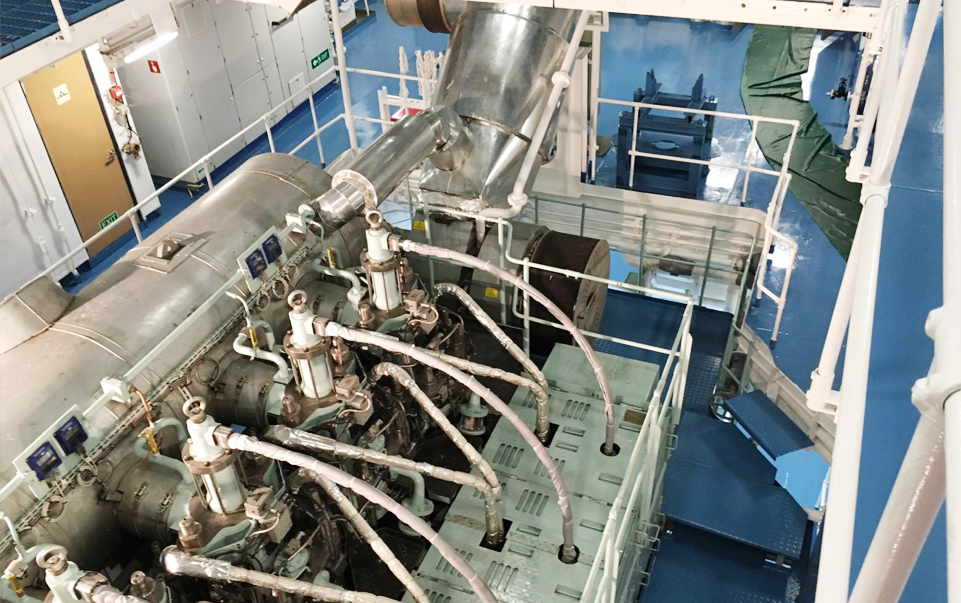

  • Main Engine: Wärtsilä 5RT-flex 50 DF 5,850 kW 102 RPM 2-stroke, low pressure, LNG dual-fuel engine.
  • Fuel management: Kongsberg fuel performance system, Shaft Torque/Power, Fuel Index, Ships speed, Fuel flowmeters.
  • AuxiliaryDiesel: 3 x Mitsubishi MAS 850-S, 790 kWe @ 1,800 rpm, 60 Hz.
  • Catamiser: Combined exhaust gas heat recovery and SCR for NOx reduction below Tier III.
  • Shaft Generator: Permanent Magnet Shaft Generator with Variable Frequency Drive to allow running the Engine/Propeller in Combinator mode for optimum efficiency. Rated output shaft generator PTO 780 kW / PTI 1,000 kW.
